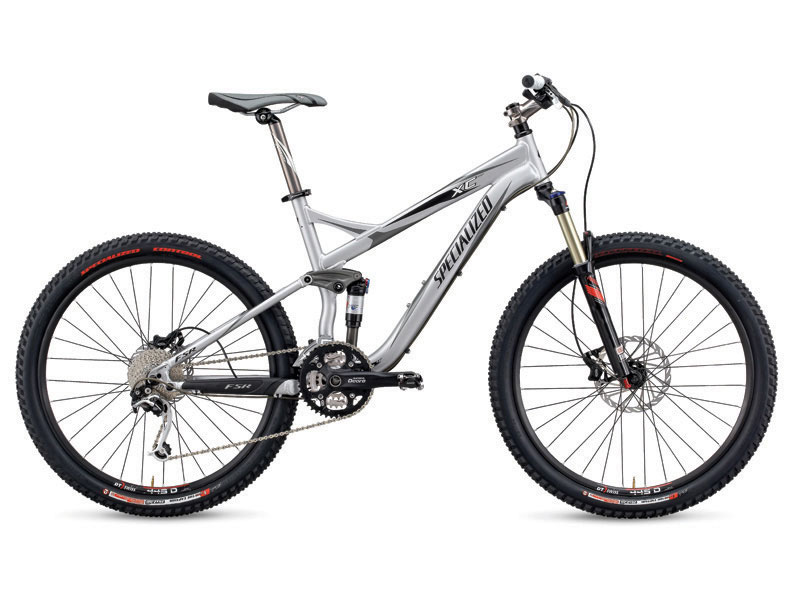

2009 FSRxc Pro
FRAME FSR XC M4 tubing w/ new rocker design, bolt on cable guides, 120mm
travel, sealed cartridge pivot bearings, disc only, replaceable rear
derailleur hanger
REAR SHOCK Fox Triad II for Specialized, custom on-the-fly 3-position
switch 1) lock out 2) Open 3) ProPedal pedal assisting damping, rebound adj.,
7.5x1.75"
FORK Rock Shox Reba SL, Dual Air, 120mm travel, 32mm stanchions, disc
only, alloy steerer, Motion Control damper, rebound adj. w/ LO, mag lower
HEADSET 1-1/8" Threadless, loose ball bearings w/ seals, black steel cups
STEM Specialized 3D forged adjustable rise, 31.8mm clamp, S:75mm, M:90mm,
L/XL:105mm
HANDLEBARS Specialized XC low rise, 6066 butted alloy, 640mm wide, 6
degree up, 8 degree backsweep
GRIPS Specialized thin lock on grip
FRONT BRAKE Avid Juicy 4 RSL Hydraulic Disc Brake, alloy backed organic
brake pads, tool-less reach adj., cleansweep rotor S/M:185mm rotor, L/XL:203mm
rotor
REAR BRAKE Avid Juicy 4 RSL Hydraulic Disc Brake, alloy backed organic
brake pads, tool-less reach adj., cleansweep rotor S/M:160mm rotor, L/XL:185mm
rotor
BRAKE LEVERS Avid Juicy 4RSL Hydraulic
FRONT DERAILLEUR Shimano M667 SLX, 34.9mm clamp, top swing, bottom pull
REAR DERAILLEUR Shimano RD-M772 Deore XT Shadow, long cage
SHIFT LEVERS Shimano SL-M531 Deore, trigger
CASSETTE Shimano HG-50, 9-speed, 11-34t
CHAIN KMC X9, 9-speed w/ reusable Missing Link
CRANKSET Shimano Deore FC-M532, 2pc., S: 170mm, others: 175mm
CHAINRINGS Shimano 22S x 32S x 44A
BOTTOM BRACKET Shimano M-532, integrated outboard cartridge bearing design
PEDALS Shimano 505 SPD, reflectors and cleats
RIMS DT Swiss 445D, disc, 24mm, double wall, pin joint, eyelets, 32h
FRONT HUB Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, alloy
QR, 32h
REAR HUB Specialized disc, sealed cartridge bearing, high/low flange w/ OS
contact side, 32h
SPOKES 1.8mm (15g) stainless, black, alloy nipples
FRONT TYRE Specialized The Captain Control, 26x2.2", 60 TPI, aramid
bead, dual compound, tubeless ready
REAR TYRE Specialized The Captain Control, 26x2.0", 60 TPI, aramid bead, dual
compound, tubeless ready
INNER TUBES Specialized Ultralight 26x2.0", presta
SADDLE Specialized MTB, 7mm cromo rails, 143mm
SEATPOST 2014 butted alloy, single-bolt setback, S/M: 350, L/XL: 400mm
SEAT BINDER Alloy collar with QR, 34.9mm clamp ID
NOTES Protective clear coat, derailleur hanger, reflectors, owners manual
|
