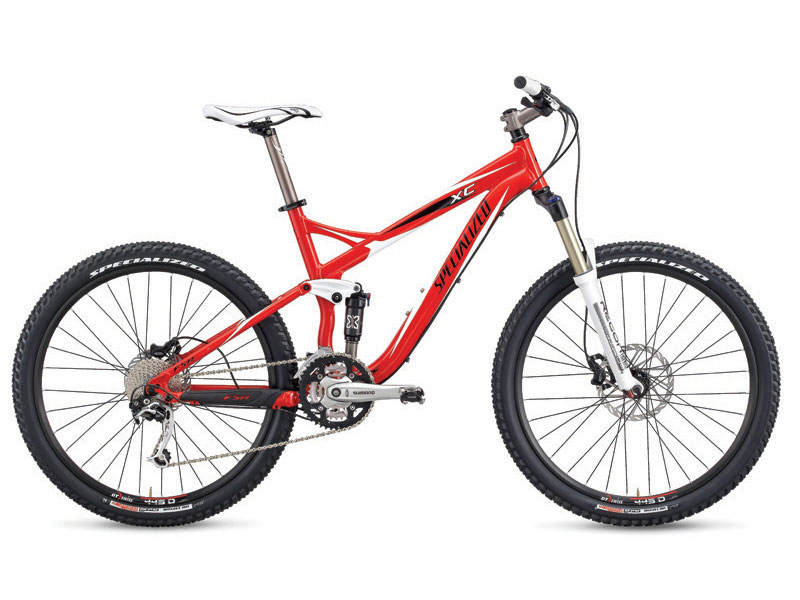

2009 FSRxc Expert
FRAME FSR XC M4 tubing w/ new rocker design, bolt on cable guides, 120mm
travel, sealed cartridge pivot bearings, disc only, replaceable rear
derailleur hanger
REAR SHOCK X Fusion 02RC, Custom tuned for Specialized, rebound adj.,
compression adjust w/lock-out, 7.5x1.75", 2 bearing upper shock mount
FORK RockShox Recon 335 SL, 120mm travel, 32mm alloy stanchions, alloy
steerer, disc only, Turn Key damper, rebound adj. w/ LO, air spring
HEADSET 1-1/8" Threadless, loose ball bearings w/ seals, black steel cups
STEM Specialized adjustable rise, four bolt 31.8mm clamp, 3D forged,
S:75mm, M:90mm, L/XL:105mm
HANDLEBARS Specialized XC low rise, butted alloy, 640mm wide, 8 degree
up, 8 degree backsweep
GRIPS Specialized thin lock on grip
FRONT BRAKE Avid Juicy 4 RSL Hydraulic Disc Brake, alloy backed organic
brake pads, tool-less reach adj., cleansweep rotor S/M:185mm rotor, L/XL:203mm
rotor
REAR BRAKE Avid Juicy 4 RSL Hydraulic Disc Brake, alloy backed organic
brake pads, tool-less reach adj., cleansweep rotor S/M:160mm rotor, L/XL:185mm
rotor
BRAKE LEVERS Avid Juicy 4RSL Hydraulic
FRONT DERAILLEUR Shimano Deore, 34.9mm clamp, top swing, bottom pull
REAR DERAILLEUR Shimano RD-M772 Deore XT Shadow, long cage
SHIFT LEVERS Shimano SL-M531 Deore, trigger
CASSETTE Shimano HG-50, 9-speed, 11-34t
CHAIN KMC X9, 9-speed w/ reusable Missing Link
CRANKSET Shimano FC-M521, Hollowtech, Octalink spline, replaceable rings w/
alloy outer, S: 170mm, others: 175mm
CHAINRINGS Shimano 22S x 32S x 44A
BOTTOM BRACKET Shimano BB-ES25, Octalink spline, 68mm x 118mm
PEDALS Shimano 505 SPD, reflectors and cleats
RIMS DT Swiss 445D, disc, 24mm, double wall, pin joint, eyelets, 32h
FRONT HUB Specialized Hi Lo disc, CNC flange, QR, 32h
REAR HUB Specialized disc, sealed cartridge bearing, high/low flange w/ OS
contact side, 32h
SPOKES 1.8mm (15g) stainless, black, alloy nipples
FRONT TYRE Specialized The Captain Sport, 26x2.2", 60 TPI, wire bead
REAR TYRE Specialized The Captain Sport, 26x2.0", 60 TPI, wire bead
INNER TUBES Specialized Ultralight 26x2.0", presta
SADDLE Specialized MTB, 7mm steel rails, 143mm
SEATPOST Specialized 6061 alloy, black, 30.9x350/400mm, setback head, 2-bolt
micro adjust
SEAT BINDER Alloy collar with QR, 34.9mm clamp ID
NOTES Protective clear coat, derailleur hanger, reflectors, owners manual
|
