Description

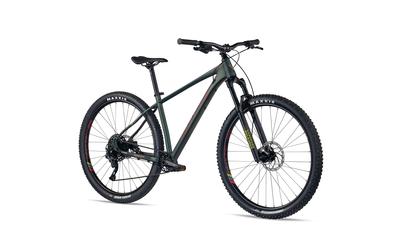

Whyte 429 V2 2022
call for availability
429 V2
TAKE THE LONG AND WILD WAY
Our latest 29er Trail Hardtail frame sets up the responsive yet unshakably confident character of the 429 and gives you a ticket to an ultra-rapid and superbly rewarding ride experience.
Whether you’re sharpening your skills in the local woods or stretching your adventure horizons, RockShox fork, Shimano gears and Maxxis tyres are ready to back every brave decision and bring you home with yet another awesome story to tell.
| SPECIFICATION | |||
|---|---|---|---|
| COLOUR | Matt Moss Rose/Olive | CASSETTE | SunRace CSMS2, ED Black, 11-46, 10 Speed |
| FRAME | 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX, Chainstay Post Mount Dropouts | CHAIN | SunRace, 10 Speed |
| FORK | RockShox Silver TK 29", 120mm Travel, Fast Black Coating, Adjustable Rebound, Turn Key Lockout | CRANKSET | Whyte, Forged 2pcs Cranks, 32T Narrow/Wide Chainring, 170mm, 10 Speed |
| REAR SHOCK | N/A | BOTTOM BRACKET | BSA, Cartridge Bearings, 73mm |
| HEADSET | FEIMIN H868B, Semi Integrated, 1 1/8" Lower 1 1/2 Lower Caged Bearings | SEATPOST | Whyte 6061 Alloy, 12mm Offset, 30.9mm x S/M 350mm, L/XL 400mm, 2 Bolt Clamp |
| REAR HUB |
Alloy, Cup & Cone, Double Seal, 32 Hole |
SADDLE | Whyte Custom |
| FRONT HUB | Alloy, Cup & Cone, Double Seal, 32 Hole | HANDLEBAR | Whyte 6061 Alloy, 25mm Rise, 31.8mm, 760mm Wide |
| SPOKES | 2.0mm, PG, Black Stainless, Brass Nipples | STEM | Whyte Alloy, S 35mm, M/L/XL 45mm |
| RIMS |
Whyte Trail 25, Tubeless Compatible, 32 Hole |
GRIPS | Whyte Lock-on V Grip |
| TYRE | MAXXIS Forekaster 29" x 2.35" Front, MAXXIS Recon Race 29" x 2.25" Rear Wire Bead | BRAKES FRONT | Tektro HD-M275, Hydraulic, 180mm Rotor |
| SHIFT LEVERS | Shimano Deore SL-M4010, 10 Speed | BRAKES REAR | Tektro HD-M275, Hydraulic, 180mm Rotor, Internal Routing |
| FRONT MECH | N/A | BRAKE LEVERS | Tektro HD-M275 |
| REAR MECH | Shimano Deore RD-M5020-SGS, Shadow Plus, 10 Speed | PEDALS | Fibre Reinforced Composite Platform |
| WEIGHT | 13.5 Kg | ||
| SIZE GUIDE | ||
|---|---|---|
| M | L | XL |
| 5’6″ – 5’10” | 5’10” – 6’2″ | 6’2″ – 6’6″ |
| 168 – 178 cm | 178 – 188 cm | 188 – 198 cm |
| GEOMETRY | |||
|---|---|---|---|
| SIZE | M | L | XL |
| A HEAD TUBE ANGLE |
66.5 | 66.5 | 66.5 |
| B SEAT TUBE ANGLE |
74.5 | 74.5 | 74.5 |
| C TOP TUBE HORIZONTAL |
628 | 648 | 665 |
| D BB HEIGHT ABOVE GROUND |
300 | 300 | 300 |
| E STAND OVER HEIGHT |
819 | 840 | 864 |
| F WHEEL BASE |
1177 | 1197 | 1217 |
| G CHAIN STAY LENGTH |
435 | 435 | 435 |
| H SEAT POST DIAMETER |
30.9 | 30.9 | 30.9 |
| I HEAD TUBE LENGTH |
115 | 120 | 135 |
| J SEAT TUBE LENGTH |
444.5 | 495.7 | 533.4 |
| STACK | 598 | 612 | 626 |
| REACH | 425 | 430 | 445 |
