Sportif

The Sportif is a classically modern road bike. Its design is drawn from the geometries and materials that have proven themselves over time. The Sportif is not a bike built for the sake of nostalgia. It is designed with a geometry aimed at stable handling and comfort over the long ride. But this is no “comfort” road bike either; it’ll haul if you’ve got the horsepower.

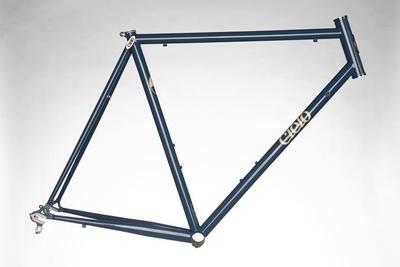

 The Sportif is a tig-welded True Temper OX Platinum steel frame built for performance in modern terms. We pair the Sportif frame with our own handmade fork featuring a custom machined fork crown. Both the frame and fork are designed to be used with medium reach (57mm) caliper brakes and can accommodate comfortable width tires and fenders. (Fender eyelets are available as an option if you wish).

While the details on a Sportif are standard by Cielo Cycles terms they do bear repeating. Each Sportif features custom machined and engraved stainless steel fork ends and rear dropouts. The custom work continues with our signature engraved seatstay caps and machined headtube collars. We powder coat our frames for durability and airbrush our graphics with dropout faces polished for a clean, classic look. A beautiful engraved brass headtube badge completes our readymade classic.
 We make each Sportif by hand, perhaps with the knowledge that you, too, have a ride that takes you to a place similar to where Camino Cielo took us. Bicycling in these terms is as pure as it gets and we dedicate ourselves to producing a bicycle frameset that joins you as an equal on each adventure. We love bicycles of every stripe and style here at Cielo Cycles but the Sportif, our beloved road bike, will always be nearest our heart.




Cielo Sportif
sizes 49 50 51 52 53 54 55 56 57 58 59 60 61 62
effective top tube length 520 525 530 535 540 550 560 565 575 585 590 595 605 610
top tube length 520 525 530 535 540 550 560 565 575 585 590 595 605 610
seat tube length (c-c) 490 500 510 520 530 540 550 560 570 580 590 600 610 620
head tube angle 72.5 72.5 72.5 72.5 73 73 73 73 73 73.5 73.5 74 74 74
seat tube angle 74 74 74 73.5 73.3 73 73 73 73 73 73 72.5 72 72
fork rake 50 50 48 48 45 45 45 45 45 45 45 45 43 43
chainstay length 418 418 418 418 418 418 418 418 418 418 418 418 418 418
wheelbase 974 980 983 983 980 987 997 1002 1012 1018 1024 1018 1020 1025
bottom bracket drop 73 73 73 73 70 70 70 70 70 70 68 68 68 68
bottom bracket height 265 265 265 265 267 267 267 267 267 267 269 269 269 269
stand over height 750 760 769 777 789 798 807 817 826 836 848 856 863 873
head tube length 97 107 116 125 133 143 153 163 173 181 193 199 207 216



Cielo Women’s Sportif
sizes 43 47 49
effective top tube length 491 510 530
top tube length 475 498 516
seat tube length (c-c) 400 440 460
head tube angle 71 71.3 72
seat tube angle 75 74 74
fork rake 50 50 48
chainstay length 418 418 418
wheelbase 966 975 989
bottom bracket drop 73 72.5 70
bottom bracket height 265 265 267
stand over height 706 728 755
head tube length 86 95 124
Pricing: £1895 for frame & fork

Seat tube length measured from center of bottom bracket to center of top tube.
Chainstay length measured from center of bottom bracket to center of dropout.
Bottom bracket height measured 700c x 28mm road tires.
Fork height measured from center of axle to crown race.

head tube: 1-1/8”
fork steer tube: 1/1-8”
bottom bracket width: 68mm english thread
rear hub spacing: 130mm
seatpost: 27.2mm
front derailleur clamp: 1-1/8”

Frames are sold with fork.
Framesets are built to use meduim reach (57mm) road calipers only.
Frameset can be ordered with optional fender eyelets.
Colors: Transit grey, Oyster white, Fall orange, Cielo blue, Jade green and Galaxy black.

Limited warranty: 5 year craftsmanship and 1 year on materials.
