Yeti's New Exciting SB66 Hardcore Trail Bike, One Of The Most Desirable Frames On The Market Today. With Switch Technology and Continuous Travel. Yeti's New SB66 has become the hottest topic here at the shop, its the frame every trail rider seems to want and for good reason, here is a small Video of the Yeti SB66 in action.
The SB66 runs Yeti's new Frame design technology- Switch Technology Is an optimized dual-link design that utilizes an eccentric mechanism (that the lower rear triangle pivot is attached)
that switches direction as the bike moves through its travel.
Built into a compact assembly, the eccentric link creates a microlink that continuously repositions the lower pivot of the swing arm, allowing us to create a suspension system with no compromises.
Efficient pedalling
at the beginning of the travel the eccentric link is rotated in a rearward direction, guiding the lower pivot of the swing-arm rearward.
This counter clockwise motion coupled with the initial rearward wheel path creates an excellent pedal platform, making the SB-66 pedal and climb without sacrificing small bump sensitivity.
Responsive mid stroke.
The flat Linear shape of the leverage ratio coupled with Switch Technology allows the bike suspension to be more responsive,
especially in the mid stroke of the travel. This essentially creates a larger "sweet spot", keeping the rider higher in the travel throughout that portion
and allowing the suspension to react better to bigger hits. There are no unexpected spikes or wallows so cornering and jumping feel comfortable and consistent throughout the travel.
Continuous Travel
Once the SB66 reaches the inflection point (rotating backwards to forwards about 100mm into the travel), the eccentric link starts to rotate in a forward (clockwise) direction.
This means the rate at which the chain stay grows (DCSL) drops of quickly, allowing the suspension to work independently of chain forces and pedal feedback. Because the suspension isn't being impeded by chain growth in the last third of the travel,
the smooth feel in the mid stroke is continued all the way to full compression without the harsh bottom out feeling.
Features

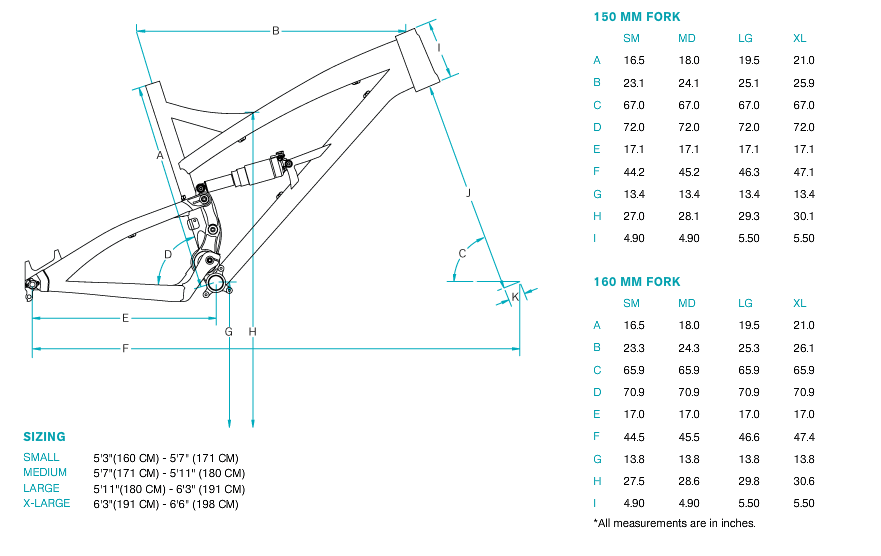

Geometry and Size Chart.
If you have any questions or if you would like to get a spec quote on the Yeti SB66 please contact our Yeti expert at the shop Howard.
