Magura Wotan

Magura Wotan <B><font color=red>SRP £599  Save 10% </font></b>
Wotan - pushing the limits.

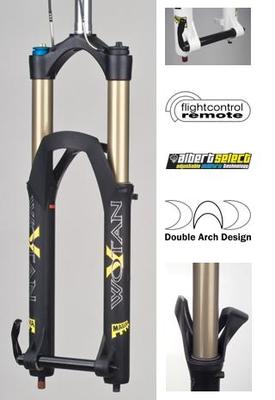

Totally new designed Enduro and Freeride air spring fork featuring an awesome and absolutely unique Double Arch Design (DAD). Designed and manufactured in Germany.

Tech features:

Albert select the revolutionary, on/off platform compression damping system. With Albert Select the rider has the easy choice with an adjuster turn on the fork (optional with remote lever from the handlebar), to switch in between a widely adjustable platform mode and an open sensitive, rock eating mode.

D.A.D The unique Double Arch Design ensures maximum torsional stiffness, ultimate steering precision and minimum torsion while braking, no matter how big the used discs are! 36mm bombproof stanchions for ultimate riding pleasure even in toughest conditions. Cold forged fork crown made of aluminium 6082 T6 with integrated cable stops for the remote control.

Flight control remote Adjustable travel on-the-fly from 160 to 120mm features easier climbing without any negative impact on frame geometry. An automatic adaption of the main and negative spring curve in the lowered position, thus eliminating any bottoming, is another asset.

Maxxle Quick release thru axle system combines the stiffness of thru-axle systems with the comfort of quick realeases. (Maxle is a registered trademark of Sram corporation).
  • Biker profile: Enduro, Freeride, All Mountain
  • Weight (in grams): from 2500g onwards (without remote lever and Maxle system)
  • Technical principle: Telescope System with DAD.
  • Travel (in mm): 160 (adjustable to 120 with Flight Control Remote)
  • Damping system: oil damping with adjustable Albert Select platform damping
  • Adjustments: Albert Select, rebound, preload via air valve, Flightcontrol Remote
  • Lockout: adjustable platform damping (Albert Select)
  • Axle to crown length (in mm): 540

    Adjustment possibilities:

  • Flightcontrol Remote - Comfortable on-the-fly adjustment of the travel from 160 to 120mm with remote lever.
  • Albert Select: Compression with adjustable platform
  • Externally adjustable rebound and preload via air valve.
  • Magura Wotan SRP £599 Save 10%
    (mag02) £539.99 Inc. VAT
