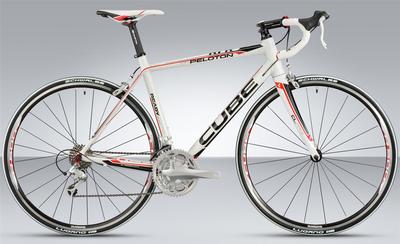

Cube Peloton Road Racing Bike Technologies:
Aero Flex Stays: These specially designed seat stays fulfil many roles. At the upper end at the connection to the seat or top tube they run laterally oval and thus offer vertical flexing and so ensure comfort. At the lower end they are extremely vertically oval and offer the minimum drag area to the headwind.
Integrated Cable Routing: Internally routed cables offer many advantages: clean appearance, cables are protected from dirt and therefore have a considerably longer life and the not required external housing saves weight.
FSS - Frame Save System: To protect our high-end aluminium frames, they are built with the CUBE Frame Save System replaceable derailleur hanger. The thread is in the hanger and not in the frame as usual. In case of a crash, this hanger can be easily and quickly replaced by a new one.
One Piece Design: Joints in high-quality aluminum frames are specially finished via this method and so create the impresssion of seamless tube design. This generates the visual effect of molding and ensures high load-bearing capacity.
Ready for Race Geometry: Our bicycles with RFR-geometry stand out by their sports character. The riding characteristics, rider comfort and rider safety in particular are taken in account for each individual bike category.
Wet Paint Surface: On polished and brushed aluminium and all HPC frames the logos and graphics are applied in multi-layer wet paint. We use this surface treatment technology mainly to save weight.
Cube Peloton Road Racing Bike Specifications:
Frame: Alu Superlite 6061 AMF Double Butted, RFR-Geometry, inner cable routing
Forks: Cube CL Race Carbon, 1.1/8"- 1.1/2"
Headset: FSA Orbit Z-T Eco, semi-intergrated
Stem: Easton EA30 Oversized
Handlebars: Easton EA30 Oversized
Grip tape: Cube Grip Control
Rear Derailleur: Shimano Sora RD-3400GS
Front Derailleur: Shimano Sora FD-3400BL triple, clamp 34.9mm
Shifter: Shimano Sora ST-3400, 9-speed
Brakes: Shimano Sora BR-3400
Cranks: Shimano Sora FC3403 50x39x30T, integrated BB
Wheels: Shimano WH-R501
Tubes: Impac RR SV28
Pedals: None
Saddle: Selle Italia X1 Road
Seat Post: Easton EA30 31.6mm
Seat Clamp: Scape Close 34.9mm
Weight: 9.1 kg
