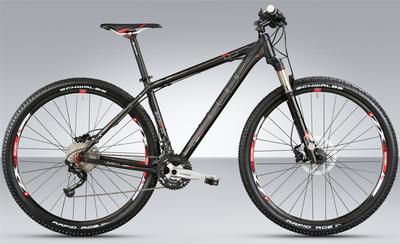

Cube LTD Pro 29

Technologies for the Cube LTD Pro 29er Hardtail Bike:

Aluminium Superlite: Extremely high tensile strength 7005 aluminium alloy requires heat treatment. Its developed for the highest requirements, very stiff and fatigue resistant, corrosion resistant, nonshearing; double butted which makes it suitable for very light tube-sets with a high level of stiffness.

Ready for Race Geometry: Our bicycles with RFR-geometry stand out by their sports character. The riding characteristics, rider comfort and rider safety in particular are taken in account for each individual bike category.

FSS - Frame Save System: To protect our high-end aluminium frames, they are built with the CUBE Frame Save System replaceable derailleur hanger. The thread is in the hanger and not in the frame as usual. In case of a crash, this hanger can be easily and quickly replaced by a new one.

One Piece Design: Joints in high-quality aluminum frames are specially finished via this method and so create the impresssion of seamless tube design. This generates the visual effect of molding and ensures high load-bearing capacity.

ARG - Agile Ride Geometry: We are not the first ones to present 29ers to the market. But it's only for 2012 that suspension fork manufacturers have been able to fulfil our demands concerning the geometry. We ran innumerable tests to develop the Agile Ride Geometry in our 2012 series of big wheel bikes. Two important details lead to the very agile character. Increased fork offsets let us achieve the same trail as our 26” bikes without having to steepen the head angle, thus maintaining generous toe clearance to the front wheel. Secondly we shortened the chain stays without compromising the seat angle. We invented a patented construction to mount the front derailleur to give us more tyre clearance while keeping a conventional seat angle, leading to a perfect riding position for every rider size. These measures lead to a natural riding position. Every mountain biker will feel immediately at home on a CUBE 29er.

Cube LTD Pro 29er Hardtail Bike Specifications:

• Frame: Alu Superlite AMF 6061 Double Butted, Agile Ride Geometry, Disc only
• Fork: Rock Shox Reba RL 29 100mm, Motion Control, PopLoc
• Headset: FSA No.10 semi-integrated
• Stem: Easton EA30 Oversized
• Handlebar: Easton EA30 Lowriser Oversized
• Grips:CUBE Performance Grip
• Rear mech: Shimano Deore XT RD-M780 Shadow 10-speed
• Front Mech: Shimano SLX FD-M661-10 Direct Mount, 10-speed
• Shifter: Shimano Deore SL-M591 Rapidfire-Plus, 10-speed
• Brakes: Shimano BR-M445 hydr. discbrake(160/180mm)
• Chainset: Shimano FC-M552 2-Piece 42x32x24T, 175mm, integrated BB, 3x10 speed
• Rims:RFR ZX24 29
• Hubs: Shimano Disc HB-M475, Shimano Disc FH-M475
• Spokes: DT Swiss Industry 2.0
• Tyres: Schwalbe Rapid Rob Performance 29x2.25
• Tube:Schwalbe MTB AV19 29
• Pedals: Fasten Alu
• Saddle: Selle Italia X1
• Seatpost: Easton EA30 30,9mm
• Seatclamp: Scape Varioclose 34.9mm
• Weight: 12.7 kg
