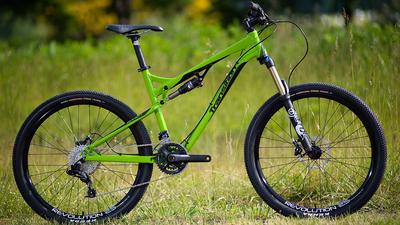

Transition Bandit

The Bandit is a true to form lightweight trail bike designed to rip up and down the mountain. We pushed the envelope of tube design and machining of frame parts to create a bike that absolutely floats through singletrack. Careful attention to pivot placement and leverage curves make the Bandit feel like a long travel bike on the descents and a XC race bike going up. Our goal was to create a trail bike that combined the ultimate uphill pedaling feel along with a playful spirit on the downhill that is a treat to throw around corners, bunny hop and pull the front end up over obstacles. The Bandit gets you the best of both worlds without having to compromise.

• REAR TRAVEL: 130mm (5.1") Rear Wheel Travel
• REAR SHOCK: Fox RP23 7.5" x 2" (Forward Pin 15.75mm x 8mm, Rear Pin 15.75mm x 8mm)
• FRAME MATERIAL: 6061 Custom Hydroformed Heat Treated Aluminum
• SIZES: Small, Medium, Large, X-Large
• COLORS: Black, Green, Pewter
• FRAME WEIGHT: 5.5 lbs (Size Medium Without Rear Shock)
• COMPLETE WEIGHT: Bandit 1 (25.7 lbs.) Bandit 2 (29.06 lbs.)
• WARRANTY: 2 year defect warranty, lifetime crash replacement.
• SEATPOST/CLAMP: 31.6mm Seatpost/34.9mm Clamp
• HEADTUBE: Tapered 1.5" / 1-1/8" (1.5" 49.6mm ID Lower Cup / 1-1/8" 44mm ID Upper Cup)
• BOTTOM BRACKET: 73mm shell x 51mm chainline
• REAR DROPOUT: 135mm x 10mm
• FRONT DERAILLEUR: 34.9mm High-Clamp, Bottom-Pull
• CHAINGUIDE: ISCG 05
