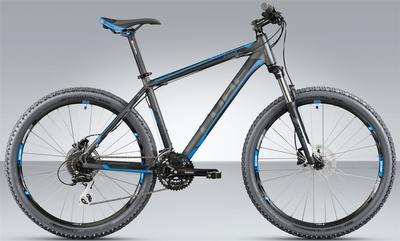

Cube Aim Disc

Technologies for the Aim Disc cross country Hardtail:

Aluminium Lite: High-density 6061 aluminium alloy requires a heat treatment for the finished product, it is stiff and very corrosion resistant, fatigue resistant, non-shearing material suitable for light tube-sets with highest stiffness.

RFR Ready For Race Geometry: Our bicycles with RFR-geometry stand out by their sports character. The riding characteristics, rider comfort and rider safety in particular are taken in account for each individual bike category.

Hardtail specifications:

• Frame:Alu Lite AMF 6061 RFR-Geometry Disc Only
• Fork: Suntour XCM Lockout 100mm
• Headset: FSA No.10 semi-integrated
• Stem: Easton EA30 Oversized
• Handlebar: Easton EA30 Lowriser Oversized
• Grips: CUBE Performance Grip
• Rear Mech: Shimano Alivio RD-M410 Top Normal 8-speed
• Front Mech: Shimano FD-M310, Top Swing 34,9mm, 8-speed
• Shifter: Shimano SL- M310 Shifter Acera Rapidfire-Plus, 8-speed
• Brakes: Shimano BR-M445 hydr. discbrake(160/160mm)
• Chainset: Shimano Acera FC-M361 42x32x22T, Shimano BB-UN26
• Rims: Alex ZX 24
• Hubs:Shimano RM66 Disc
• Spokes: DT Industry
• Tyres: Schwalbe Smart Sam 2.25
• Tubes: Impac AV14
• Pedals: Fasten Alu
• Saddle: Scape Active 8
• Seatpost: Easton EA30 31,6mm
• Seatclamp: Scape Varioclose 34.9mm
• Weight:13.7 kg
